Bring all-flash, scale-out storage to

your enterprise applications with

EMC XtremIO. Purpose-built for

flash, XtremIO storage arrays are

amazingly fast. Delivering high IOPS

at less than 1 millisecond latency is

just the start. EMC XtremIO helps

you harness the power of flash

storage by building in innovations

like content-based data placement

and dual-stage metadata. As a result,

you’ll have predictable and balanced

performance, always-on data

reduction, thin provisioning, data

protection, writeable snapshots,

encryption, and simple storage provisioning. Ideal for virtual desktop infrastructure (VDI), virtual server infrastructure, databases and analytics, and mixed workload consolidation. See how XtremIO has been recognized as an all-flash array Gartner Magic Quadrant Leader. Visit the EMC Reflections blog to or visit Gartner directly to view the report: Gartner Magic Quadrant for Solid-State Arrays. Choose an EMC XtremIO system and scale out linearly by adding more XtremIO X-Bricks.

XtremIO is the only scale-out storage array designed from the ground up for flash, with unique in-memory metadata that does magic for data services and data reduction. No more legacy limitations. Everything is optimized for flash and leverages all of its capabilities, minimizes its cost, and maximizes its lifespan. This is the world’s #1, totally purpose-built, scale out, all-flash array powered by Intel processors. No wonder. So whatever you need to do you can do it better than you ever knew possible with XtremIO. Database storage. VDI storage. Literally anything. Apps run faster. Scale better. Cost less. Gain tremendous flexibility. Empower users. Who says you can’t please all the people all the time?

System           Raw Capacity        Read/Write IOPS     Read IOPS

Starter          5 TB                    150K                     250K

1 X-Brick      10, 20, 40 TB     150K                      250K

2 X-Bricks    20, 40, 80 TB      300K                     500K

4 X-Bricks    40, 80, 160 TB    600K                    1M

6 X-Bricks    120 or 240 TB    900K                     1.5M

8 X-Bricks    160 or 320 TB    1.2M                     2M

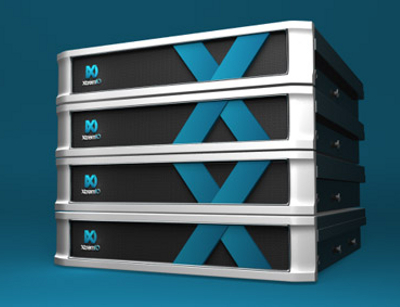

The XtremIO storage system is based on a

scale- out architecture. The system uses

building blocks, called X-Bricks, which can be

clustered together to grow performance and

capacity as required. An X-Brick by itself is a

high availability, high performance SAN storage

appliance with 5TB, 10TB or 20TB capacity that

can drive incredible database loads, handle

thousands of virtual machines and support

thousands of virtual desktops. The logical

usable amount of storage available is

substantially higher than the physical flash due to real-time, inline data reduction and thin provisioning. When additional IOPS performance or capacity is required, the XtremIO storage system scales-out linearly, such that two X-Bricks will supply twice the IOPS and four X-Bricks will supply four times the IOPS. Latency remains consistently low as the system scales due to the powerful RDMA Infiniband fabric within the system.

Big, small, or anywhere in between, there’s an XtremIO array sized right for you.  With a scale-out design that grows according to your needs, additional performance and capacity are added in a building-block approach.  XtremIO’s advanced architecture ensures that maximum performance is maintained as the system scales – without administrator intervention, configuration or tuning! All resources scale in balance – storage processors, memory, flash capacity, and host ports – so you always get the most out of the system and there are no performance bottlenecks.

And when rethinking flash storage from the ground-up, why not remake data protection in the process? XtremIO’s flash-specific data protection algorithms ensure the array is as resilient as it is fast. Every X-Brick has its data protected in an N+2 scheme that tolerates multiple simultaneous

SSD failures. Optimal data encoding and decoding processes recover from failed SSDs rapidly with distributed rebuilds. Hot spares are not needed since XtremIO’s distributed rebuilding process utilizes free space in the array.  And while providing this extreme level of data protection, XtremIO’s algorithms also outperform every traditional RAID level while demanding fewer write cycles from the flash. It’s data protection that is faster, safer, utilizes less capacity overhead, and yields the highest flash endurance. Only on XtremIO.

INCREDIBLY POWERFUL SCALE-OUT

XPECT MORE:

With ExtremIO, Lock in

Your Support Pricing

XtremIO Xpect More Program lowers TCO by locking in Premium Support Services pricing for up to seven years, longer than any other vendor. If you purchase an XtremIO array between July 1, 2014 and December 31, 2015 with three years of Premium Support Service, you will have the option to renew that contract at the same price for up to four more years. That’s what you should expect from the leader in Flash.

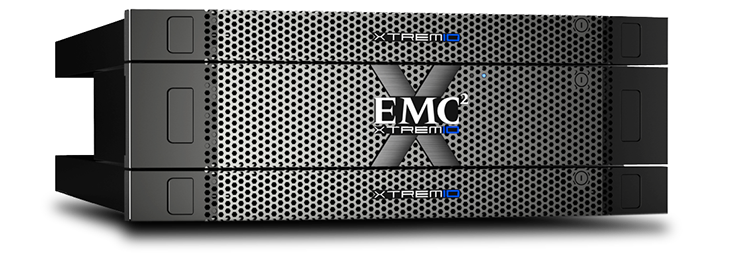

Each X-Brick is comprised of:

• One 2U Disk Array Enclosure (DAE),

  containing:

• 13 (Starter X-Brick) or 25 eMLC SSDs (400GB or

   800GB SSD options)

• Two redundant power supply units (PSUs)

• Two redundant SAS interconnect modules

• One Battery Backup Unit

• Two 1U Storage Controllers (redundant storage

   processors)

Each Storage Controller includes:

• Two redundant Power Supply Units (PSUs)

• Two 8Gb/s Fibre Channel (FC) ports

• Two 10GbE iSCSI ports

• Two 40Gb/s InfiniBand ports

• One 1Gb/s management/IPMI port. All of this

   drives the hardware magic of XtremIO, and

   that is only the beginning

XtremIO arrays scale-out to any desired performance or capacity

level.  Just add more ‘X-Brick’ scaling units.

Unlike hard drives, flash media has a limited write cycle life span. Also unlike hard drives, data stored on flash cannot be directly overwritten. Rather it must first be erased (which is very slow) and then reprogrammed with the new data. Thus, it is imperative to engineer the storage system to ensure that the flash media will last for the expected life span of the array under heavy enterprise workloads. XtremIO has developed several technologies that ensure our storage system will last for at least five years under constant, full speed write workloads.

Flash Media Longevity

It’s easy to think about XtremIO as just another flash array that’s great for boosting

performance on some critical application.  But if that’s the only way you think about it,

you’re missing the huge value it brings across your data center.  It’s common for

XtremIO customers to begin with a targeted workload in mind, but quickly find out

they can expand the use cases for the array with additional applications and workloads, and to revise their flash strategy to use XtremIO across the board.

To our customers, XtremIO is magic.  It transforms their datacenters.  It transforms their businesses.  It transforms they way they spend their time because they no longer worry about provisioning or tuning complexity.  If you haven’t taken a hard look at XtremIO, you’re missing out on one of the most important technological shifts to come along in a decade.

XtremIO’s features are best described in five categories; achieving longevity of the flash media, lowering the effective cost of flash capacity, delivering performance and scalability, providing operational efficiency, and delivering advanced storage array functionality. Many features overlap these categories, providing benefits in several areas at once.

 • Scales to more than 1,612 TB effective capacity per cluster

 • Inherently load balances data for maximum performance

    without tuning

 • Provides writeable snapshots with space efficiency and zero

    performance impact

 • Delivers truly inline, always-on data deduplication to reduce

    capacity needs and TCO

 • Enables operational and disaster recovery using native

    replication with EMC RecoverPoint

 • Includes XtremIO Data Protection (XDP): more resilient and

    lower overhead than legacy RAID

 • EMC XtremIO Xpect More Program: Lock in Premium Support

    pricing for up to 7 years
